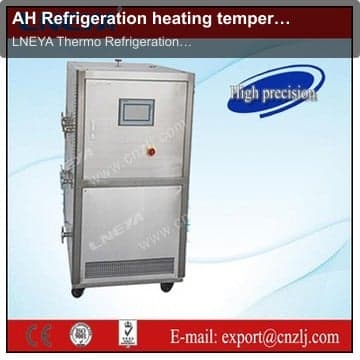

AH Refrigeration heating temperature control system apply to Glass-Lined reactor temperature range f
Basic Information
581
27
14
4.5(53)
Subcategory & Sub-subcategory
Trade Type
Sell
Product Name
AH Refrigeration heating temperature control system apply to Glass-Lined reactor temperature range f
Details
Manufacturer(s)
Specifications
- Model: AH-235W AH-235
- Temperature range℃: -25℃~200℃
- Control Mode: Feed forward PID +Our special dynamic control calculation, PLC controller
- Communication protocol: MODBUS RTU Protocol, RS 485 Interface
- Temp. control optional: Material process control
- Program Editor: 20 programs, each program can edit 45 steps.
- Temperature feedback: Heat-conducting medium :PT100 Material process:PT100
- Temp. accuracy: ±1℃
- Heating power: 3.5kW
- Cooling capacity: 200℃
- 100℃: 3.5kW
- 20℃: 3.5kW
- -5℃: 3 kW
- -20℃: 1.8kW
- Circulation pump: Max35L/min 2BAR
- Compressor: Copeland
- Evaporator: KAORI Plate heat exchanger
- Expansion valve: Danfoss
- Safety protection: Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
- Closed circulation system: The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
- Refrigerant: R-404A
- Connection size: DN20
- Water-cooled type W (cooling water at 20℃): 800L/H 1.5bar~4bar
- air-cooled: 195kg
- Weight: water-cooled
- Power: AC 380V 50HZ 6kW (max)
- Case material: SUS 304
Supply Chain
Delivery:
Acceptable Lead Time: 25 days
