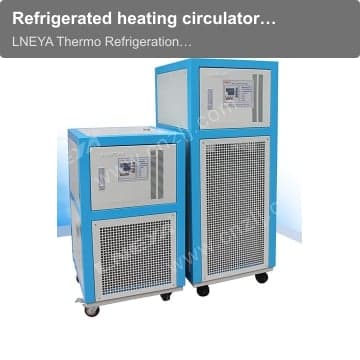

Refrigerated heating circulator HR-25℃～200℃
Basic Information
1.3K
74
20
4.9(36)
Subcategory & Sub-subcategory
Trade Type
Sell
Product Name
Refrigerated heating circulator HR-25℃～200℃
Manufacturer(s)
Specifications
- Model: HR-25
- Temperature range ℃: -25℃～200℃
- Controller: PID adaptive controller
- Temp. control: Heat-conducting medium outlet temp. control
- Communication protocol: MODBUS RTU Protocol, RS 485 Interface
- Temperature feedback: Heat-conducting medium temperature feedback PT100
- Temp. accuracy: ±0.5℃
- Heating power: 2.5kW
- Cooling capacity: 200℃
- 100℃: 2.5kW
- 20℃: 2.5kW
- -5℃: 2kW
- -20℃: 1kW
- Circulation pump: Max25L/min 2BAR
- Compressor: Copeland
- Evaporator: Plate heat exchanger
- Operation Panel: Display setting temperature and testing temperature; Touch key display
- Safety protection: Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
- Closed circulation system: The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
- Refrigerant: R-404A
- Connection size: DN-15
- Connection size (air-cooled): 400*600*1050
- Weight (air-cooled): 115KG
- Power: AC 220V 50HZ 4kW (max)
- Case material: Cold rolled steel
- Optional power: 220V 60HZ three-phase, 440V～480V 60HZ three-phase
Supply Chain
Delivery:
Acceptable Lead Time: 25 days
